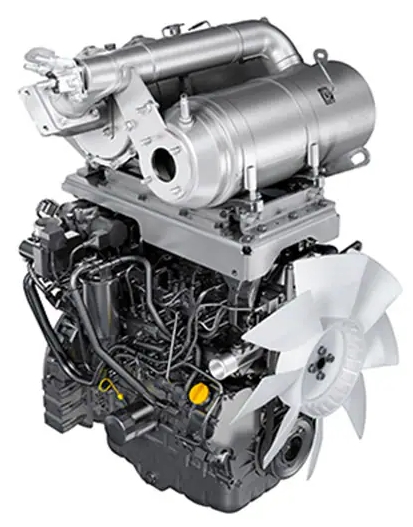

Yanmar 4TNV94FHT-NRNQK

EU Stage5 Ready
동급 최고 수준의 깨끗한 엔진
6,000시간 동안 정기 정비 없이 DPF* 사용
현장에서의 원활한 작동
견고하고 안정적인 출력
동급 최고의 연비
Output 69.8 - 88.4 kW
rpm 2000 - 2500 rpm
370kg


https://www.yanmar.com/in/engine/products/diesel/v_watercooled/4tnv94fht/

4TNV94FHT｜Vertical Water-cooled Diesel Engines｜Products｜Industrial Engine｜Yanmar Engine Manufacturing India

https://senseiparts.com/engine-specs/4tnv94fht-nrnqk




Applicable Manufacturer Ynm Okayama
Engine Model 4TNV94FHT-NRNQK
Equipment Type Tractor
Engine Type Vertical In-line 4-cycle Water-cooled Diesel Engine
Combustion Chamber Direct Injection Engine Type
Air Intake System Exhaust Tc With Ic (air To Air
Bore 3.7 in.
Stroke 4.3 in.
Displacement 186.3 cu in.
Rated Speed 2500 RPM
Specific Fuel Consumption <= 229 ( 168)
Compression Ratio 17.6 (effective 15.8)
Fuel Injection Timing Fir 8.5+1.0/-1.0
Fuel Injection Pressure Mpa (kgf/cm2 )
Rotation Direction Viewed From Flywheel Side Left
Governor Common Rail Ecu
Cooling System Radiator Cooling
Lubricating System Forcible Lubrication By Trochoid Pump
Starter Electric Startin(starting Motor 12vdc-3.0kw)
Charger See Spec Sheet
Oil Capacity 2.5 gal. 1.2 gal.
Coolant Capacity 1.1 gal.
Flywheel 351ID mark 4SA7
Oil Press Switch 7.3 psi
Fuel Filter Water Separator (customer-arra N
